How to Choose the Right MAP Gas Mixture for Your Seafood Products: 2026 Industry Guide
Modified Atmosphere Packaging (MAP) has become one of the most effective preservation technologies for seafood processing operations worldwide. By replacing oxygen in the package with a precisely calibrated gas blend, food processors can extend product shelf life from 3–5 days (air-packaged) to 10–14 days or longer, dramatically reducing spoilage losses and expanding geographic reach.
Yet many seafood producers still struggle with a fundamental question: which gas mixture is right for my specific product? The answer is far from one-size-fits-all. A gas blend optimized for fresh salmon fillets will look very different from one designed for cooked shrimp or raw white fish. Getting it wrong means accelerated discoloration, off-odors, or — worst of all — accelerated microbial growth that renders product unsafe.
This guide walks you through the science, current 2026 industry standards, and practical selection framework for MAP gas mixtures in seafood applications.
Why MAP Matters More Than Ever for Seafood in 2026
The global seafood processing industry faces mounting pressure on multiple fronts:
- Regulatory tightening: FDA’s FSMA Final Rule on Preventive Controls and updated HACCP guidance (2025) impose stricter documentation requirements on packaging and shelf-life claims.
- Export complexity: Different destination markets (EU, Japan, Southeast Asia) now have divergent MAP labeling requirements, making gas choice a regulatory as well as technical decision.
- Consumer expectations: Retail buyers increasingly demand 10+ day shelf life for fresh seafood, which is physically impossible with air packaging for most species.
- Cold chain gaps: In many markets, cold chain infrastructure is imperfect. The right MAP gas blend provides a critical safety margin against temperature abuse events.
The Three Gases in MAP: CO2, N2, and O2
Virtually all seafood MAP blends use some combination of three gases:
Carbon Dioxide (CO2)
CO2 is the primary antimicrobial agent in MAP. It inhibits aerobic bacteria (including Listeria monocytogenes, Salmonella spp., and Pseudomonas) by dissolving into the product’s moisture phase and lowering pH. CO2 also gives excellent color preservation for salmon, trout, and other pigmented fish.
Typical range for seafood: 20-60% CO2
Nitrogen (N2)
N2 is an inert filler gas that displaces oxygen and mechanically supports the package structure (preventing collapse). It has no antimicrobial properties of its own but slows oxidative rancidity and helps maintain product appearance.
Typical range for seafood: 30-80% N2
Oxygen (O2)
O2 is generally kept low in seafood MAP (typically 0-30%) because it fuels aerobic microbial growth. However, some oxygen is intentionally retained for certain products where it is needed for color retention (e.g., red-meat fish like tuna) or to meet regulatory requirements in some markets.
Typical range for seafood: 0-30% O2
2026 Recommended Gas Mixtures by Seafood Category
Fresh Fatty Fish (Salmon, Trout, Mackerel)
Recommended blend: 40% CO2 / 60% N2
Fatty fish are highly susceptible to lipid oxidation. A high-N2 blend with moderate CO2 inhibits both microbial spoilage and oxidative rancidity. The CO2 also preserves the characteristic pink/orange color of salmon by preventing metmyoglobin formation.
Expected shelf life extension: 8-12 days (vs. 3-4 days air-packed)
Key risk: Too much CO2 (>60%) can cause flavor tainting — consumer panels consistently detect “sharp” or “burnt” notes at excessive CO2 levels in salmon.
Lean White Fish (Cod, Haddock, Pollock, Tilapia)
Recommended blend: 30-40% CO2 / 60-70% N2
Lean fish have lower fat content and different spoilage flora. Lower CO2 is adequate for inhibition, and the higher N2 level prevents package collapse while remaining cost-effective.
Expected shelf life extension: 10-14 days
Cooked Shrimp and Prawns
Recommended blend: 40% CO2 / 60% N2
Cooked shrimp presents a unique challenge: the product is already sterile from cooking but re-contamination risk is high during handling. CO2’s antimicrobial effect is critical. A 40/60 blend is the industry standard recommended by FAO 2025 guidelines.
Expected shelf life extension: 12-18 days at less than or equal to 3C
Key risk: Odor absorption — shrimp easily take up off-flavors from packaging materials or gas impurities. Use high-purity gases (greater than or equal to 99.9%).
Raw Shellfish (Crabs, Lobster, Scallops)
Recommended blend: 30% CO2 / 70% N2
Crustaceans have high levels of free amino acids and enzymes that accelerate spoilage. The CO2 inhibits spoilers including Vibrio species, while N2 maintains package integrity.
Expected shelf life extension: 7-10 days
Live Shellfish (Oysters, Mussels, Clams)
Recommended blend: High N2 / Low CO2 (e.g., 80% N2 / 20% CO2)
Live shellfish respire and require some metabolic activity. Standard MAP is generally NOT recommended for live shellfish — instead, humidity-regulating “breathing films” are preferred. If MAP is used, keep CO2 very low (less than or equal to 20%) to avoid lethal acidosis.
The Science Behind Gas-to-Product Ratios
Beyond the gas blend percentage, one of the most underappreciated factors in MAP seafood is the gas-to-product volume ratio. Industry guidelines (Campden BRI, 2025) recommend a ratio of approximately 2:1 (gas volume to product headspace) for most seafood applications.
Why does this matter? If the gas-to-product ratio is too low, CO2 dissolves rapidly into the product, the antimicrobial effect diminishes within 48 hours, and the package atmosphere reverts toward air. If the ratio is too high, you pay for gas you don’t need and may cause package distension.
For retail packs (200g-500g), a headspace of 30-40% of total package volume is typically optimal.
Common MAP Mistakes in Seafood Processing
Mistake 1: Using the Same Blend for All Products
Many processors standardize on one gas blend for operational simplicity. While this is understandable, maintain at least two distinct blends: one for fatty fish (40/60 CO2/N2) and one for lean fish/shellfish (30/70 CO2/N2).
Mistake 2: Ignoring Gas Purity
Food-grade MAP gases must meet purity standards of greater than or equal to 99.9%. Industrial-grade gases may contain oil traces, water vapor, or aromatic contaminants that cause off-flavors. Always specify “food grade” when ordering and request certificates of analysis.
Mistake 3: Inadequate Temperature Control
MAP and cold chain are complementary, not substitutes. If your product enters the MAP line at 8C rather than 0-2C, you have already lost significant shelf life potential. Implement incoming product temperature logging as standard practice.
Mistake 4: No Shelf Life Validation
EU Regulation 1169/2011 and FDA guidance require that any shelf-life claim be supported by validation data. Many Chinese seafood exporters to EU markets have faced border rejections because their MAP shelf-life claim was not backed by challenge test data. Conduct at least one dedicated shelf-life study before making shelf-life marketing claims.
Regulatory Requirements for MAP Seafood in 2026
- EU: EC Regulation 1169/2011 requires MAP gas composition to be declared on the label in descending order.
- USA (FDA): MAP is considered a food additive when used to extend shelf life beyond conventional packaging. The gases (CO2, N2, O2) are GRAS-listed but labeling must comply with 21 CFR Part 101. Shelf-life claims require HACCP plan documentation.
- China: GB 7718-2011 requires declaration of modified atmosphere, but specific MAP gas composition disclosure is not mandatory unless it constitutes a nutritional claim.
- Japan: MAP gas composition must be listed on the label per Japan’s compositional standards for specific seafood categories.
How to Select the Right MAP Gas Mixture: A Practical Decision Framework
- Identify your target species and product form (raw, cooked, frozen, live). This is the single most important variable.
- Determine your target market and shelf-life requirement (domestic retail, export, food service).
- Review the target market regulatory requirements for MAP labeling and gas purity standards.
- Consult your gas supplier and MAP equipment manufacturer for validated blend recommendations for your specific product and packaging format.
Partner with KBT Packing for Your MAP Equipment Needs

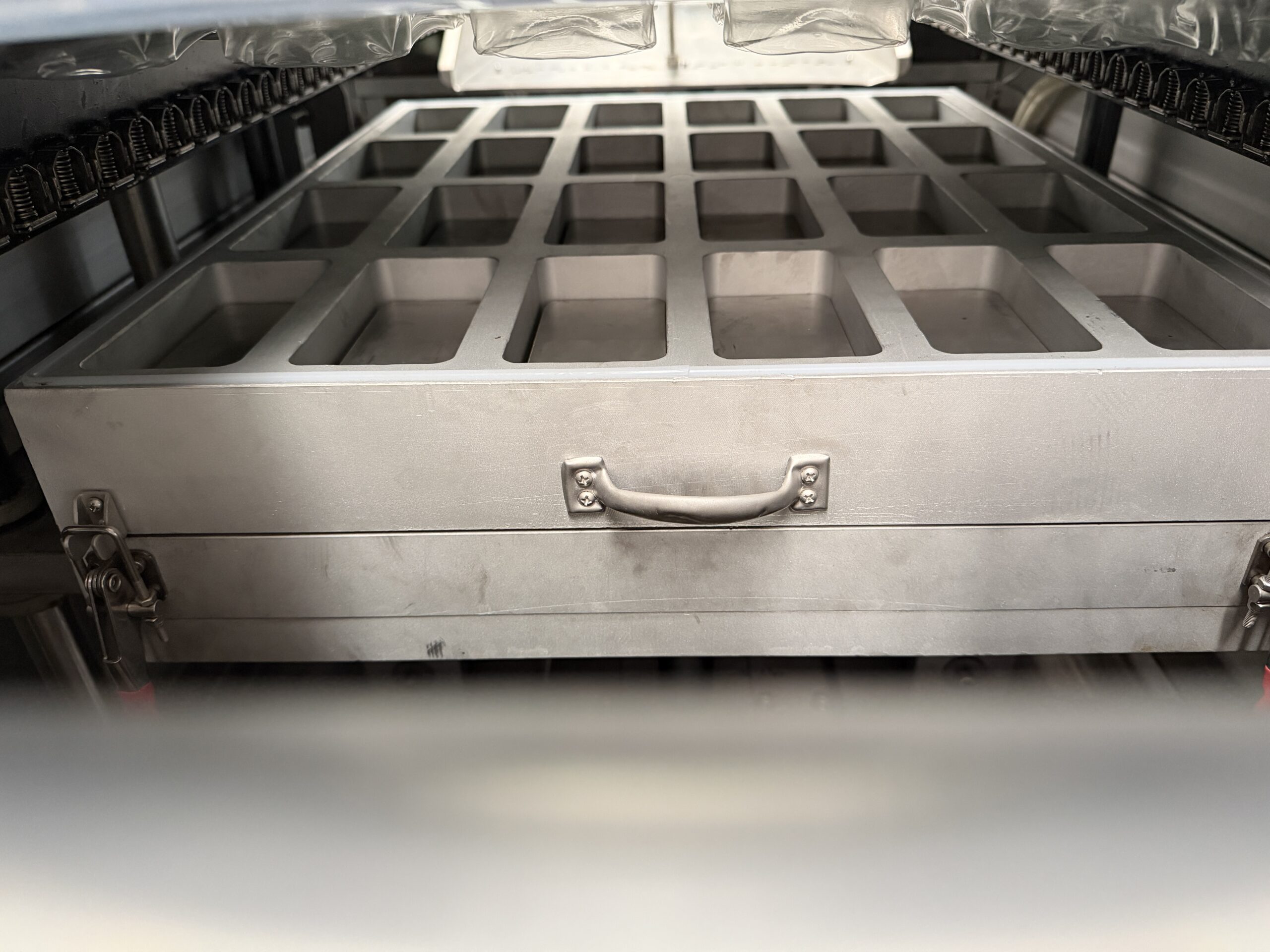

Selecting the right gas mixture is only half the equation — you also need MAP tray sealing equipment that can deliver consistent gas flushing, precise seal quality, and production-line compatibility with your chosen film specification.
KBT Packing supplies a full range of MAP tray sealing machines with adjustable gas flushing capabilities, digital gas mixing control panels, and integrated validation reporting tools. Our technical team can help you configure the right equipment-gas-film combination for your specific product line.
Contact us today for a customized MAP equipment consultation for your seafood processing operation.
Frequently Asked Questions
What is the best MAP gas mixture for fresh salmon?
The recommended MAP gas mixture for fresh salmon fillets is 40% CO2 and 60% N2. This balance provides strong antimicrobial protection while preserving the characteristic pink-orange color and preventing the flavor tainting that occurs at higher CO2 concentrations.
How does MAP extend seafood shelf life?
MAP extends seafood shelf life by replacing oxygen (which fuels aerobic bacteria and oxidation) with a protective gas blend. CO2 dissolves into the product moisture and inhibits microbial growth, while N2 provides an inert filler that prevents package collapse and slows oxidative rancidity. The combination can extend shelf life from 3-5 days (air) to 10-18 days depending on species and temperature.
What gas ratio is used for MAP shrimp?
For cooked shrimp, the industry standard MAP blend is 40% CO2 / 60% N2. This provides approximately 12-18 days of shelf life at less than or equal to 3C. Gas purity must be greater than or equal to 99.9% to prevent off-flavor absorption.
Can MAP be used for live shellfish like oysters?
Standard MAP is generally not recommended for live shellfish, as the CO2 can cause lethal acidosis in live organisms. Instead, humidity-regulating “breathing films” are preferred for live oysters, mussels, and clams. If MAP is unavoidable, use a very low CO2 blend (less than or equal to 20%) with N2 making up the balance.
What are the FDA labeling requirements for MAP seafood in the USA?
In the USA, FDA requires that MAP seafood labeling comply with 21 CFR Part 101. Any shelf-life claim must be supported by your HACCP plan’s shelf-life validation documentation. While the specific gas percentages do not need to appear on the label, the fact that the product uses modified atmosphere packaging should be accurately reflected in marketing claims.
What is the gas-to-product ratio recommendation for seafood MAP?
The recommended gas-to-product headspace ratio for seafood MAP is approximately 2:1 (gas volume to product headspace). For retail packs of 200g-500g, this typically means a headspace of 30-40% of total package volume. Getting this ratio right ensures sufficient CO2 remains active throughout the intended shelf life.
