KBT1200 Series – Medium to Large Capacity Freshness Solution. Advanced Freshness Technology for Continuous Food Production
High Efficiency. Stable Output. Automated Rotary Design.

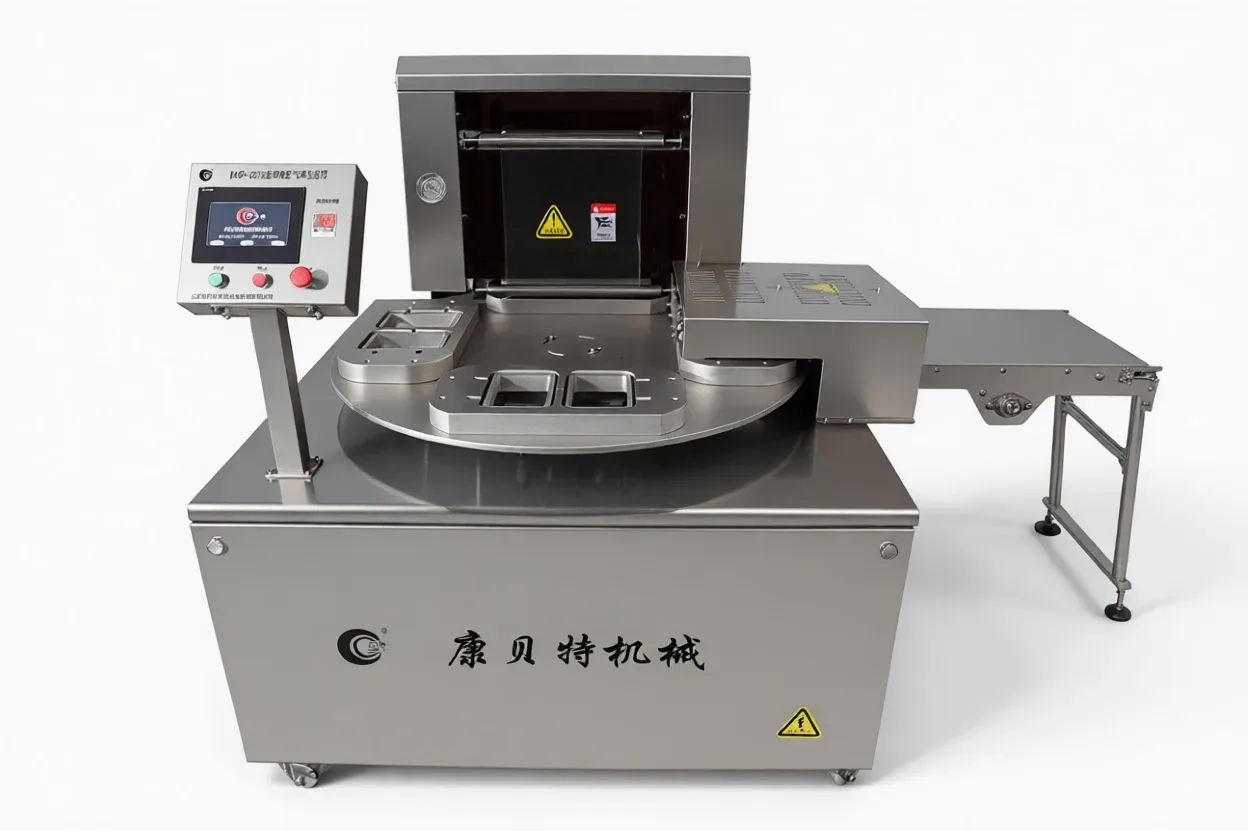

The KBT1200 Series Rotary Modified Atmosphere Packaging Machine is designed for medium to large production capacities, delivering stable, continuous MAP tray sealing with a rotary mold system. It is suitable for packaging food products in pre-made plastic containers of various sizes and shapes, including trays, bowls, and cups (rectangular, square, round, triangular, etc.).
By replacing ambient air inside the package with a controlled gas mixture, the KBT1200 Series can extend product shelf life by 50%–500%, while preserving natural color, texture, and taste—without artificial preservatives.
Core Selling Points:
Rotary Mold System: Enables continuous operation with higher efficiency than linear or single-station machines.
Medium to High Capacity Output: Ideal for growing food factories and central kitchens.
Clean Label Preservation: Extends freshness naturally without chemical additives.
Flexible Automation Options: Standard automatic tray unloading, optional automatic tray loading.
The KBT1200 Series applies the proven Vacuum – Gas Filling – Sealing MAP process:
Vacuum: Air is evacuated from the tray to remove residual oxygen.
Gas Filling: Pure gas or a precise mixture of food-grade gases (N₂, CO₂, O₂, or others) is injected.
Sealing: The tray is hermetically sealed with top film to lock in the modified atmosphere.
Compared with traditional gas flushing methods, this process ensures higher gas purity, reduced gas consumption, and more consistent shelf-life performance.

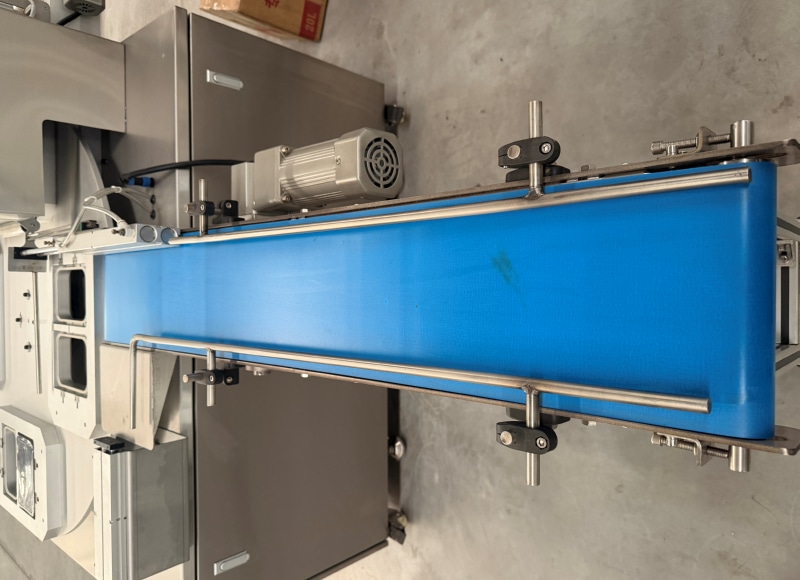

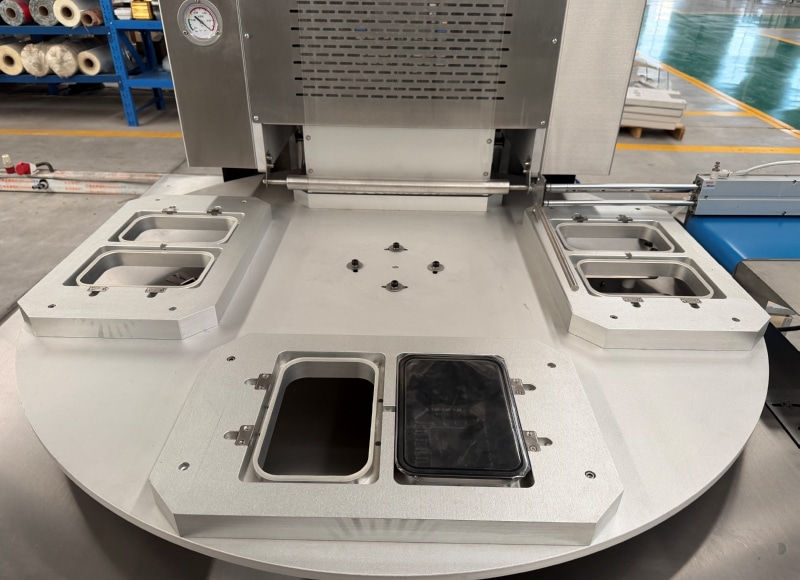

Rotary Automation: Rotary molds combined with conveying belts allow smooth tray transfer and stable rhythm.
Reliable Vacuum Performance: Equipped with a BUSCH vacuum pump for consistent vacuum efficiency.
High Hygiene Standard: Food-grade SUS304 stainless steel construction meets strict food safety regulations.
Precision Control: Mitsubishi PLC, servo motors, and temperature control ensure sealing accuracy and stability.
The KBT1200 Rotary MAP Packaging Machine is widely used across fresh and semi-fresh food sectors:

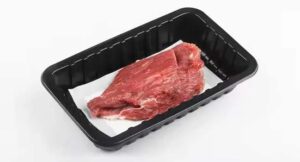

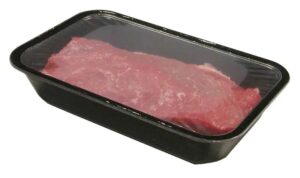

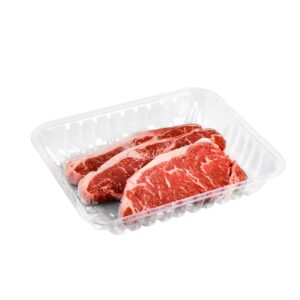

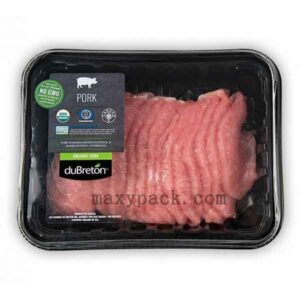

Beef, pork, lamb, chicken
Maintains fresh color and extends shelf life

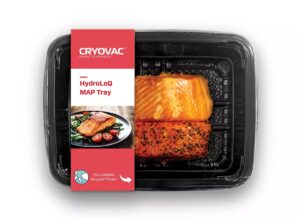

Fresh fish fillets, shrimp, shellfish
Prevents deformation and protects delicate textures

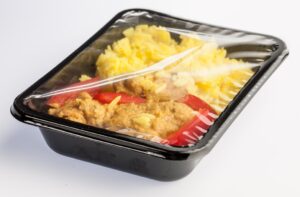

Cooked meals, convenience foods, deli products

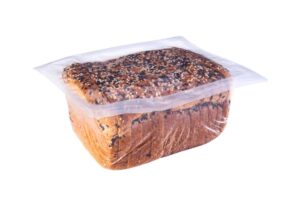

Pastries, desserts, and portioned fresh foods
KBT1200 Rotary Modified Atmosphere Packaging Machine – Technical Parameters
| Item | Specification / Description |
|---|---|
| Model | KBT1200 |
| Maximum Tray Size | Customizable |
| Maximum Film Width | Customizable |
| Maximum Film Roll Diameter | 280 mm |
| Packing Speed | 600–700 trays/hour |
| Power Supply | 380V / 50Hz |
| Air Pressure | 0.6–0.8 MPa |
| Total Power | 9 kW |
| Vacuum Pump Airflow Rate | 100 m³/h |
| Vacuum Pump Motor Power | 5.5 kW |
| Vacuum Pump Brand | BUSCH |
| Machine Weight | 700 kg |
| Overall Dimensions (mm) | 1800 × 1400 × 1650 |
Note: Each KBT1200 MAP machine is customized according to customer product and tray specifications. The above data is for reference only.

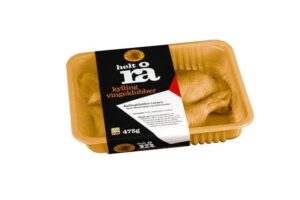

Pre-made Plastic Trays: PP, PET, CPET (custom sizes and shapes)

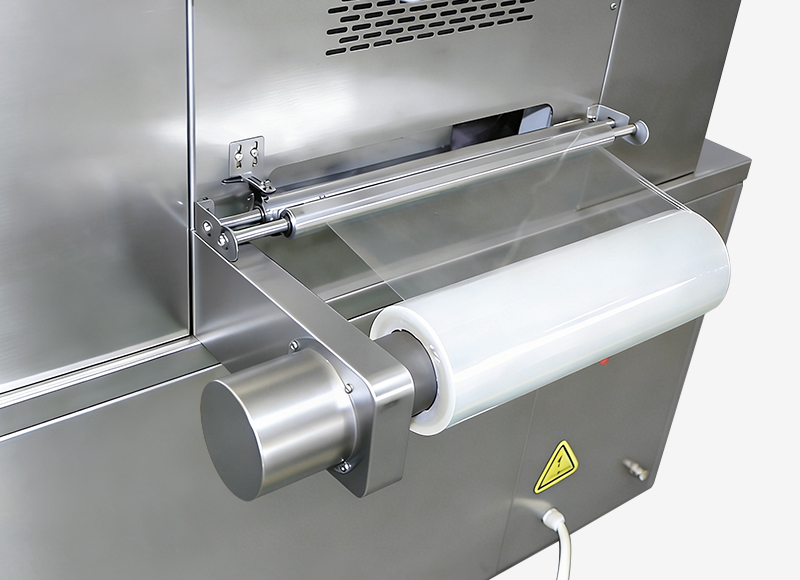

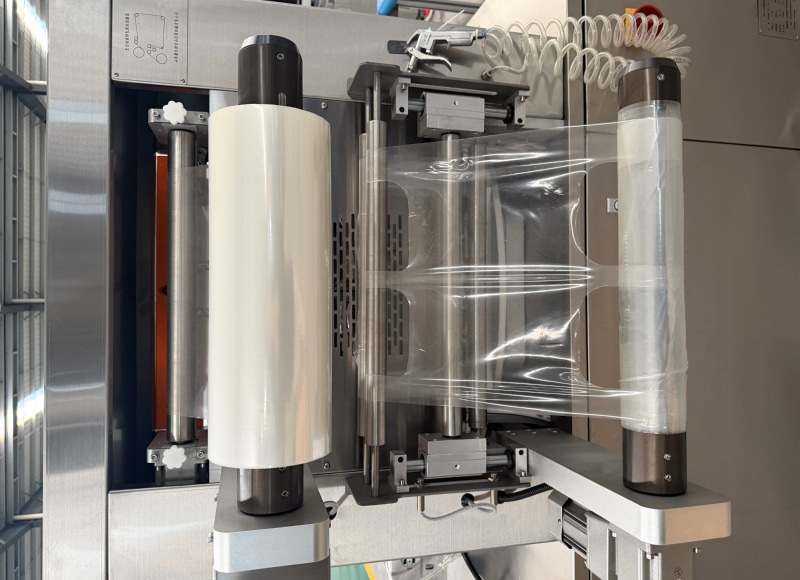

Top Sealing Films: High-barrier films, anti-fog films available
Food-Grade Gas Cylinders: O₂, N₂, CO₂ (purity ≥ 99.99%)
Gas Pressure Regulators
Gas Mixer: Required for mixed gas recipes
Nitrogen Generator: Optional for on-site nitrogen production
Air Compressor Set:
Air compressor (7.5 kW)
Air storage tank (1 m³)
Air dryer and air filter
Q1: Is automatic tray loading included as standard?
Automatic tray unloading to the conveyor belt is standard. Automatic tray loading is available as an optional upgrade.
Q2: Can the KBT1200 handle different tray sizes?
Yes. Tray size and shape are customized through dedicated molds designed for your product.
Q3: What gas mixtures can be used?
The machine supports pure gas or mixed gas combinations of N₂, CO₂, O₂, and other food-grade gases.
Q4: What utilities are required for installation?
3-phase industrial power supply
Compressed air at 0.6–0.8 MPa
Food-grade gas supply (cylinders or nitrogen generator)
Control System: Mitsubishi 3GA20MT PLC with Mitsubishi touch screen
Drive System: High-precision Mitsubishi servo motors
Temperature Control: Mitsubishi 4-channel temperature control module
Sealing System: Split-type heating plate with grid structure for consistent seal quality
Safety Features: Emergency stop, alarm system, open-phase and anti-phase protection
Molds: Aluminum-magnesium alloy molds, high strength, corrosion-resistant, long service life
Optional Function: Date printing via inkjet system
